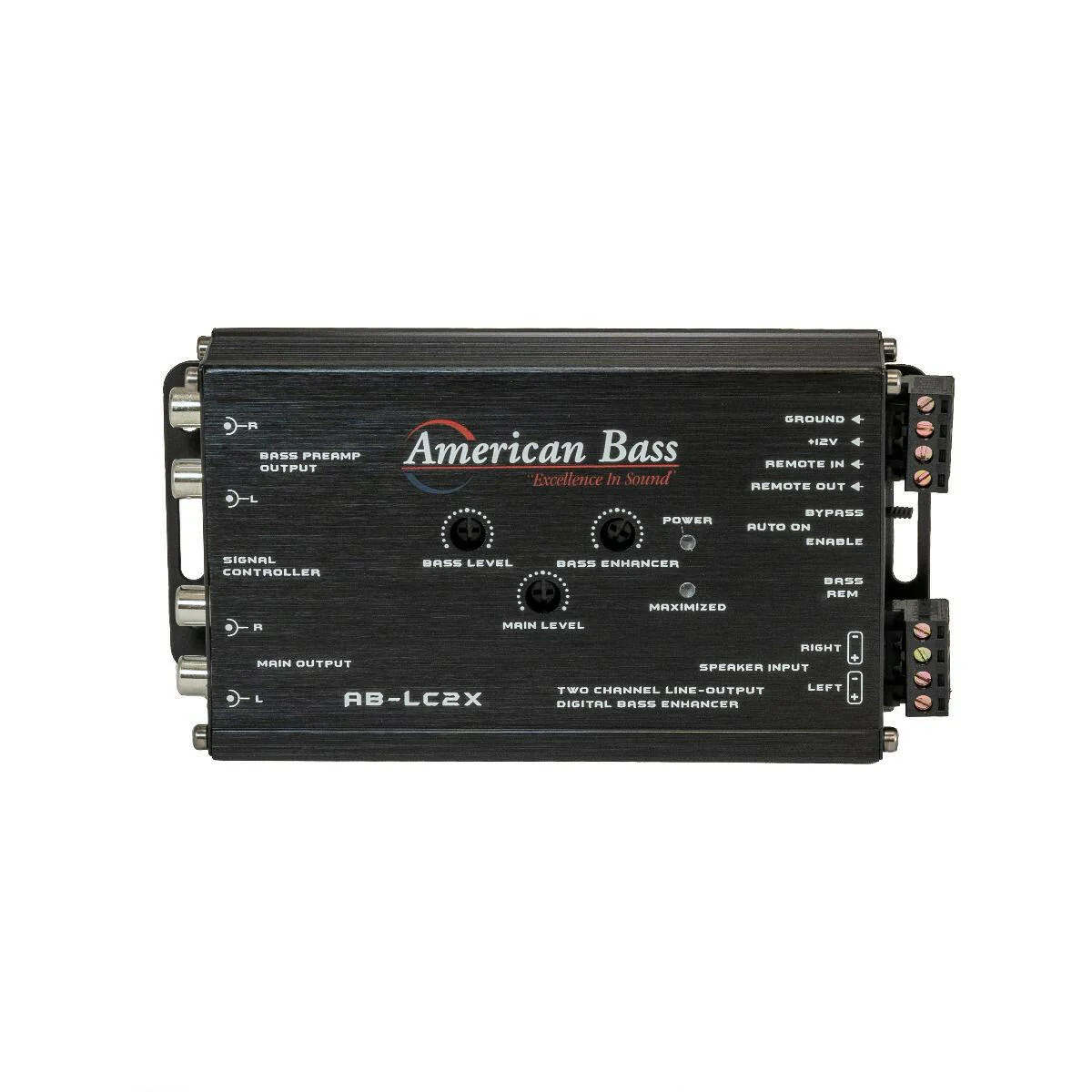

Signal Processor Digital Bass Enhancer

SKU: AB-LC2X

Upgrade your car audio experience with the American Bass AB-LC2X 2 Channel Line-Output Digital Bass Enhancer. This versatile device fine-tunes your audio system by optimizing equalization, managing crossovers, aligning sound waves with time alignment, correcting phase issues, and providing seamless integration with factory-installed systems. Enhance your bass output and enjoy precise volume control and level matching across all components.

Features:

• Speaker Level Input Accepts Up to 500 Watts RMS
• Bass Enhancer Bass Compensation
• Selectable Audio ON
• 9.5 Volt Pre-out
• 12 Volt Trigger Out
• Dual Amplifier Outputs
• Level Matching Controls

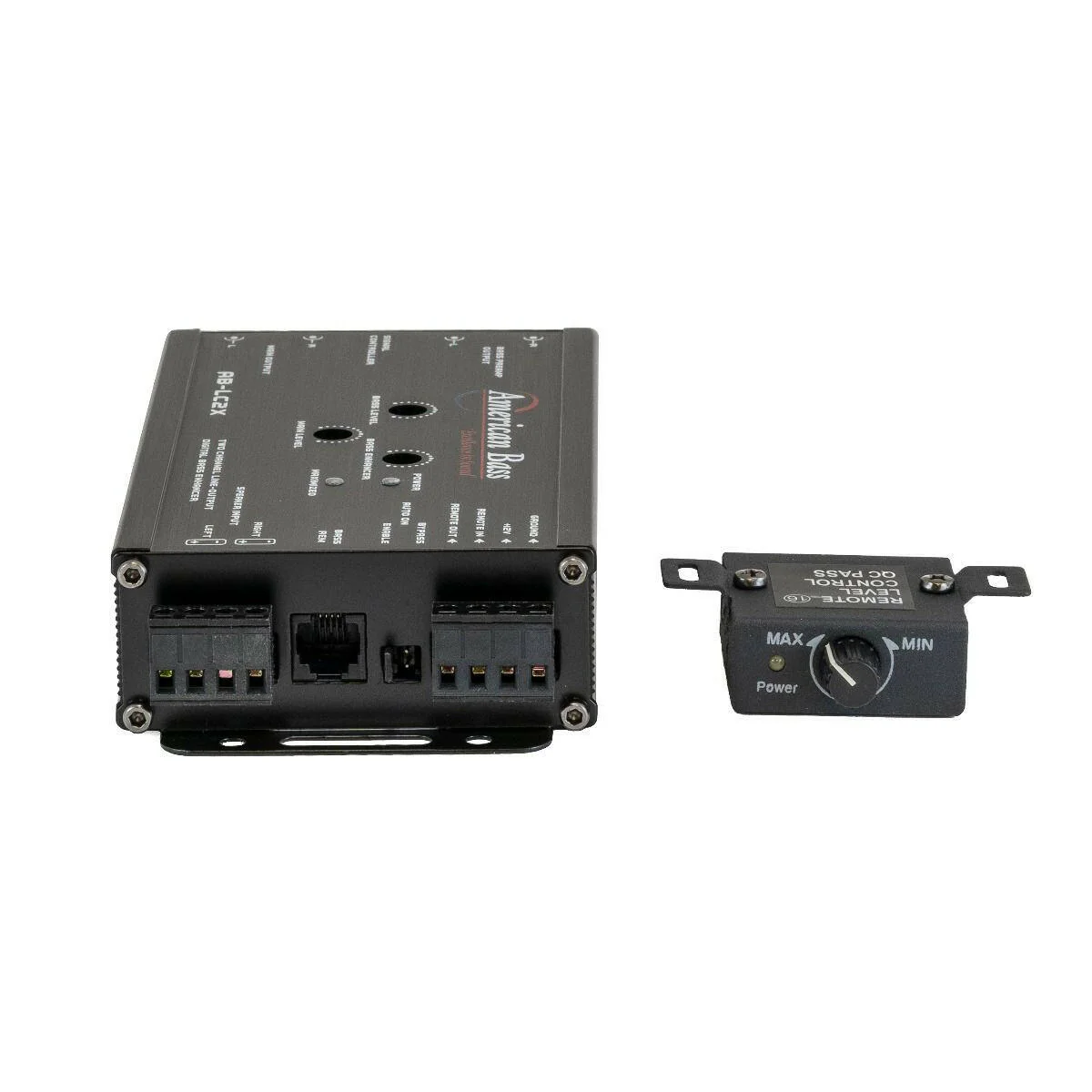

• Dash Remote Level Control

MAXIMUM SPEAKER LEVEL INPUT	400 WATTS PER CHANNEL@ 4OHMS
MAXIMUM SPEAKER LEVEL INPUT	9.5V RMS/12V
DASH LEVEL CONTROL REMOTE	+0/-19dB
FREQUENCE RESPONSE	10Hz-100kHz;+1dB
TOTAL HARMONIC DISTORTION	0.01%
SIGNAL TO NOISE RATIO	>11dB
INPUT IMPEDANCE	20OHMS
OUTPUT IMPEDANCE	150OHMS
POWER DRAW	150mA
RECOMMENDED FUSE RATING	1 AMP
